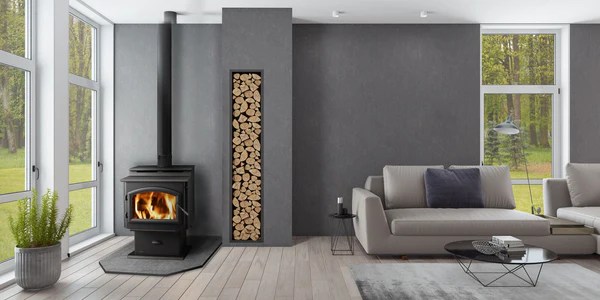

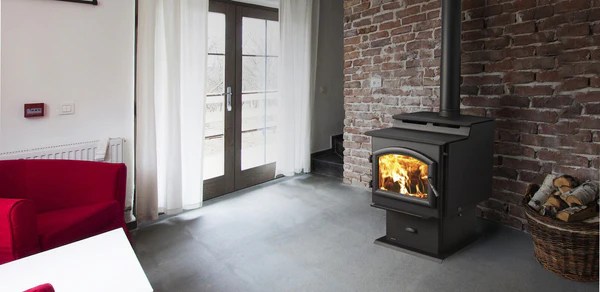

Quadrafire 5700 Step Top Wood Stove

The 5700 Step Top is a wood-burning powerhouse. It’s big on heating performance, and even bigger on efficiency. Automatic Combustion Control (ACC) burn technology offers precision heating control, and easily blends with the Quadra-Fire Four-Point Burn System. Embrace the 5700’s powerful, money-saving, efficient wood stove performance.

  • Heat 1,400-3,700 sq ft with 76,200 BTUs*, based on climate and home efficiency
  • Low emission levels of 2.3 grams per hour, certified by the EPA
  • 3.0 cu ft firebox capacity / recommended 22″ log length
  • Up to 15 hours of burn time from each load of fuel†
  • Easy start-up
  • Also available in these sizes: 3100 and 4300 Step Top

*The amount of heat produced by a heating appliance is measured in British Thermal Units (BTUs). One BTU represents the amount of energy required to raise the temperature of 1 lb. of water by 1 degree F. Generally, more BTUs correlate to greater heating potential. However, the amount of BTUs needed to heat a specific area varies, based on climate and home efficiency.

Description

Dimensions in inches. Refer to installation/owner’s manual for detailed specifications on installing this product. Hearth & Home Technologies reserves the right to update units periodically. Product installation must adhere strictly to instructions shipped with product.

Model Specifications

5700 Step Top

Appliance Width: 27″
Appliance Height: 37-11/16″
Appliance Depth1: 32-3/8″
Peak BTU/hr Output2: 76,200
Heating Capacity3: 1,400 – 3,700 sq ft
Maximum Burn Time4: 15 hrs
Firebox Capacity: 3.0 cu ft
Recommended Log Length: 22″
Viewing Area: 187 sq in
Efficiency5: 77.9%
Emissions: 2.3 grams/hour

1 Appliance Depth includes entire unit including depth of firebox and extension onto hearth.

2 BTU: 1st hour output uses high burn efficiency number. BTU will vary depending on the type of fuel used and moisture content of the fuel.

3 This is a general guide, see your local dealer for help in determining the product that best suits your heating needs based on climate, home efficiency, location of the heater, and air movement in the room.

4 Actual burn times will vary based on how the appliance is operated, load size, moisture content and type of wood used.

5 Weighted Average LHV (Low Heating Value) efficiency.

Heat output will vary depending on the type of fuel used. The flame and ember appearance may vary based on the type of fuel burned and the venting configuration used. Actual product appearance, including flame may differ from image shown. Refer to the owner’s manual for complete clearance requirements and specifications. Product specifications and pricing subject to change without notice. For testing and listing information please refer to the owner’s/installation manual.

*For select products: Heating capacity to be used as a guide only. See your local dealer for help in determining the product that best suits your heating needs based on climate and home efficiency.

†For wood-burning appliances: Actual burn times will vary based on how the appliance is operated, load size, moisture content and type of wood used, and installation.
