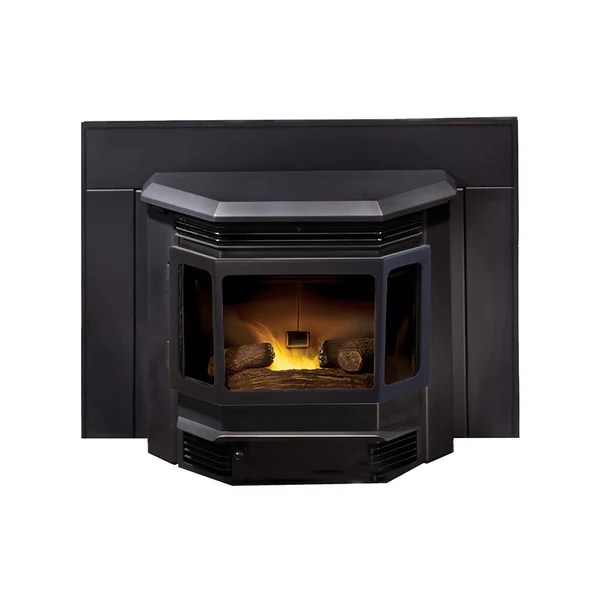

Quadrafire Classic Bay 1200 Pellet Insert

Santa Fe Pellet Insert

Description

The Classic Bay 1200i delivers stunning flames and impressive performance—always on display through its large bay window. Superior technology helps the 1200i produce powerful warmth, while remaining highly efficient.

  • 46,400 BTUs — heats 1,000 to 2,600 square feet, based on climate and home efficiency
  • EPA certified, with low emission levels of 1.3 grams per hour
  • 75lb hopper capacity
  • Patented feed system for jam-free operation
  • Easy-clean firepot

Key Features and Technologies

Learn more about key product features and technologies.

Limited Lifetime Warranty

Limited Lifetime Warranty

Environmental Protection Agency Approval

Environmental Protection Agency Approval

This appliance meets the U.S. Environmental Protection Agency’s emissions standards.

Options

Controls

Have complete control over your fire. Controls listed are tested and approved for recommended use with the hearth systems indicated.


Fronts-Doors

Available in standard black trim.

Specifications

Dimensions in inches. Refer to installation/owner's manual for detailed specifications on installing this product. Hearth & Home Technologies reserves the right to update units periodically. Product installation must adhere strictly to instructions shipped with product.

Model Specifications

CB1200I-C Insert

Appliance Width: 28-1/2"
Appliance Height: 25-1/2"
Front Width Minimum Firebox Opening: 29-3/4"
Height Minimum Firebox Opening: 19-3/4"
Depth Minimum Firebox Opening: 13-1/4"
Back Width Minimum Firebox Opening: 22-1/2"
Extension Onto Hearth: 13-5/8"
BTU/hr Input1: 17,000 - 48,500
Heating Capacity2: 1,000 - 2,600 sq ft
Hopper Capacity3: 75 lbs
Viewing Area: 153 sq in
Efficiency4: 67.6%
Emissions: .8 grams/hour

1 BTU/hr Input based on maximum feed rate per hour multiplied by approximately 8600 BTU, which is average BTU from a pound of pellets.

2 This is a general guide, see your local dealer for help in determining the product that best suits your heating needs based on climate, home efficiency, location of the heater, and air movement in the room.

3 Fuel density and pellet shape will affect hopper capacity.

4 Weighted Average LHV (Low Heating Value) efficiency.

Heat output will vary depending on the type of fuel used. The flame and ember appearance may vary based on the type of fuel burned and the venting configuration used. Actual product appearance, including flame may differ from image shown. Refer to the owner's manual for complete clearance requirements and specifications. Product specifications and pricing subject to change without notice. For testing and listing information please refer to the owner's/installation manual.

*For select products: Heating capacity to be used as a guide only. See your local dealer for help in determining the product that best suits your heating needs based on climate and home efficiency.

Documents

Owners Manual Install Manual Parts List Brochure
