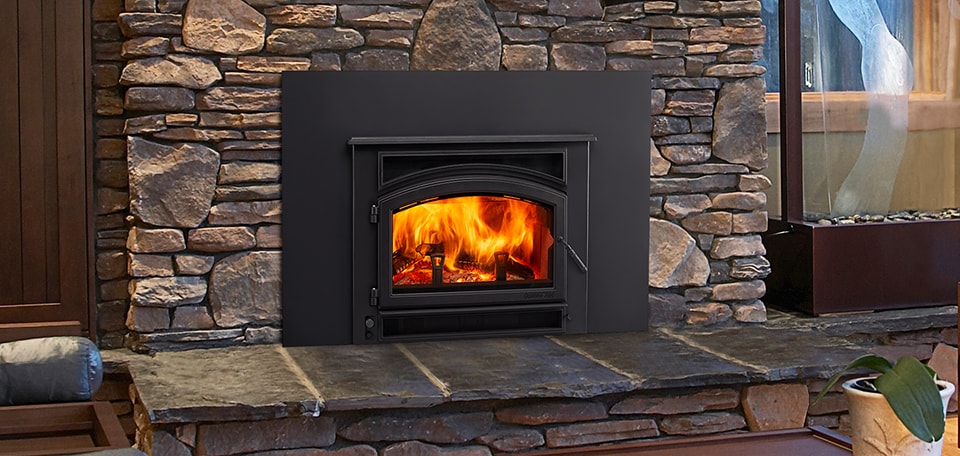

Quadrafire Expedition II Wood Insert

Expedition II Wood Insert

Description

The Expedition II steel wood insert provides a great value for those looking for the easiest wood insert to operate. Powered by the Quadra-Fire four-point burn system providing an impressive fire that can be easily seen through the large 275 sq.in. cast iron glass door. Along with the Automatic Combustion Control (ACC), which gives you more air when you want it for easier start up or that extra boost of heat when needed. This is done automatically once you set the ACC so no need to stick around and tend the fire, just enjoy the heat.

Options

Insert Finish

Classic Black

Finishes:

Classic Black


Surrounds

Two surround sizes are available – No trim required



  • Large: 50 ¾” x 34”
  • Small: 42 ¾” x 31”



Two optional trim pieces available in large and small size



  • Cast Iron Trim
  • Nickel Trim




Shelves

The shelf mantel is available in 48”, 59” or 72” lengths and with designs that accent any room.

Specifications

Dimensions in inches. Refer to installation/owner’s manual for detailed specifications on installing this product. Hearth & Home Technologies reserves the right to update units periodically. Product installation must adhere strictly to instructions shipped with product.

Model Specifications

Expedition II

Size: Medium
Fuel Type: Wood
Peak BTU/hr Output1: 56,000
Heating Capacity2: Up to 2,400 sq ft
Maximum Burn Time3: 7 hours
Firebox Capacity: 2.4 cu ft
Recommended Log Length: 20″
Viewing Area: 275 sq. in.
Efficiency4: 77%
Emissions: 1.9 grams/hour

1 BTU: 1st hour output uses high burn efficiency number. BTU will vary depending on the type of fuel used and moisture content of the fuel.

2 This is a general guide, see your local dealer for help in determining the product that best suits your heating needs based on climate, home efficiency, location of the heater, and air movement in the room.

3 Actual burn times will vary based on how the appliance is operated, load size, moisture content and type of wood used.

4 Weighted Average LHV (Low Heating Value) efficiency.

Heat output will vary depending on the type of fuel used. The flame and ember appearance may vary based on the type of fuel burned and the venting configuration used. Actual product appearance, including flame may differ from image shown. Refer to the owner’s manual for complete clearance requirements and specifications. Product specifications and pricing subject to change without notice. For testing and listing information please refer to the owner’s/installation manual.

*For select products: Heating capacity to be used as a guide only. See your local dealer for help in determining the product that best suits your heating needs based on climate and home efficiency.

†For wood-burning appliances: Actual burn times will vary based on how the appliance is operated, load size, moisture content and type of wood used, and installation.

Documents

Owners Manual

Install Manual

Parts List

Brochure
