Vermont Castings Montpelier II Wood Insert

Montpelier II

Wood Burning Insert

Description

Watching the flames and feeling the warmth of a wood fire is an experience that never gets old. The Montpelier II wood insert maintains that timeless appeal and highlights large, unobstructed views of the fire, turning your existing, drafty fireplace into an efficient centerpiece. Proudly crafted and casted by our artisans in Vermont, where no detail is too small, no element insignificant.

  • Timeless cast iron styling with a furniture-quality finish
  • Heats 1,000-2,400 sq ft with 56,000 BTUs, based on climate and home efficiency
  • Variable speed fan comes standard to better distribute heat throughout your space
  • Conveniently burn up to 20” logs


Limited Lifetime Warranty      This appliance meets the U.S. Environmental Protection Agency’s emissions standards.

Options

FEATURES

Timeless Cast Iron Styling

Timeless Cast Iron Styling

Timeless cast iron styling with a furniture-quality finish

Variable Speed Fan Kit

Variable Speed Fan Kit

Variable speed fan to better distribute heat throughout your space

20

20″ Logs

Conveniently burn up to 20” logs

SURROUNDS

Choose between cast iron or steel surrounds.

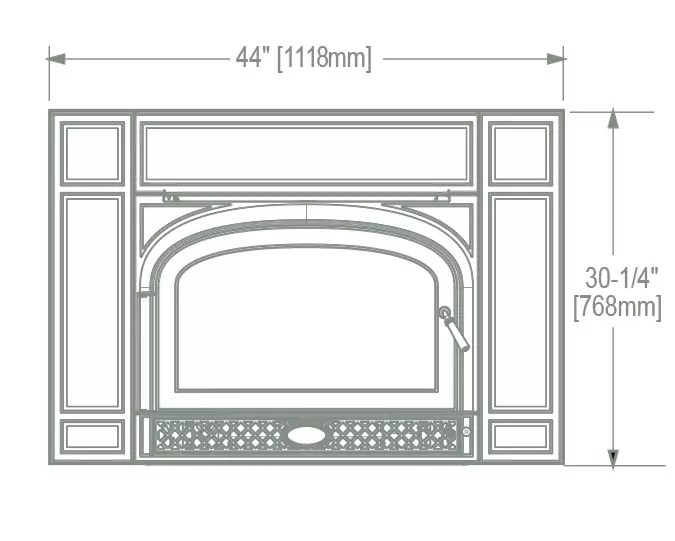

Mead II Surround

Mead II Surround

44” x 30-1/4”

Steel Surround

Steel Surround

43” X 31” (Small), 51” X 34” (Large)

INSERT FINISHES

Choose from two finishes to complete your look.

Majolica Brown

Majolica Brown

Classic Black

Classic Black

OPTIONS & ACCESSORIES

Extended Trim Plate

Extended Trim Plate

Designed for use on the Mead II cast surround this extended trim plate will cover openings up to 44”W x 30-1/4”H

Leather Gloves

Leather Gloves

These durable leather gloves are perfect for loading a hot stove

Cast Iron Wood Box

Cast Iron Wood Box

Enjoy fine cast detail and ample capacity as you store all the wood you need to keep your home warm

Safety Screen

Safety Screen

This portable safety screen allows you to have peace of mind that young children will not stray too near the stove

Specifications

Dimensions in inches. Refer to installation/owner’s manual for detailed specifications on installing this product. Hearth & Home Technologies reserves the right to update units periodically. Product installation must adhere strictly to instructions shipped with product.

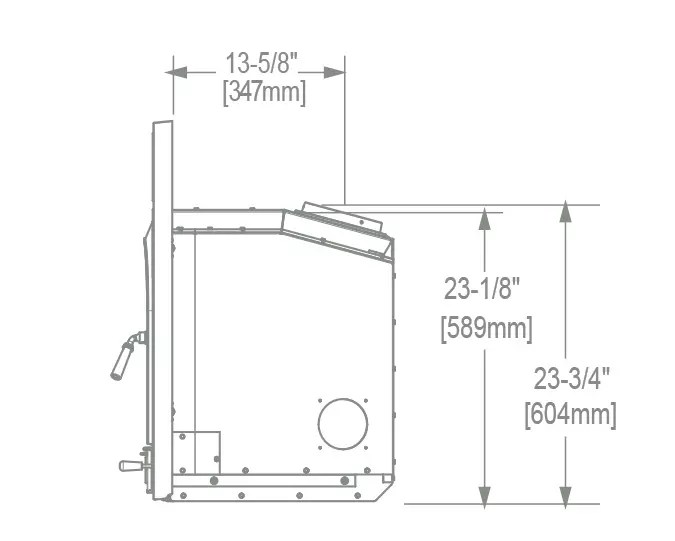

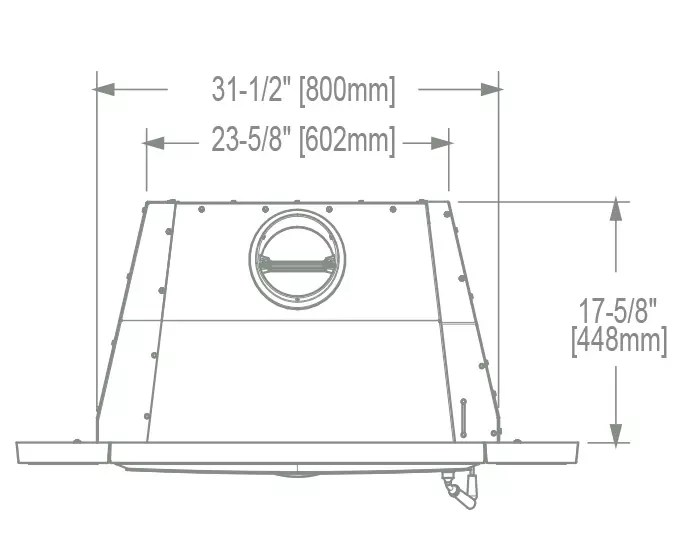

MODEL SPECIFICATIONS

MONTPELIER II WOOD INSERT

Appliance Width: 31-1/2″
Appliance Height: 23-1/8″
Appliance Depth1: 17-5/8″

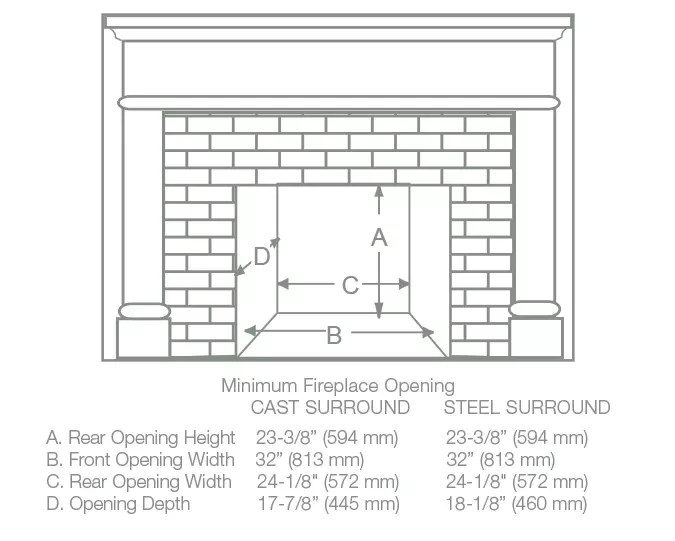

Front Width Minimum Firebox Opening: 32″
Height Minimum Firebox Opening: 23-3/8
Depth Minimum Firebox Opening: 17-7/8″
Back Width Minimum Firebox Opening: 24-1/8″
Fuel Type: Wood
Peak BTU/hr Output2: 56,000
Heating Capacity3: 1,000 – 2,400 sq ft
Maximum Burn Time4: 7 hrs
Firebox Capacity: 2.4
Recommended Log Length: 20″
Efficiency5: 77%
Emissions: 1.9 grams/hour

1 Appliance Depth includes entire unit including depth of firebox and extension onto hearth.

2 BTU: 1st hour output uses high burn efficiency number. BTU will vary depending on the type of fuel used and moisture content of the fuel.

3 This is a general guide, see your local dealer for help in determining the product that best suits your heating needs based on climate, home efficiency, location of the heater, and air movement in the room.

4 Actual burn times will vary based on how the appliance is operated, load size, moisture content and type of wood used.

5 Weighted Average LHV (Low Heating Value) efficiency.

Heat output will vary depending on the type of fuel used. The flame and ember appearance may vary based on the type of fuel burned and the venting configuration used. Actual product appearance, including flame may differ from image shown. Refer to the owner’s manual for complete clearance requirements and specifications. Product specifications and pricing subject to change without notice. For testing and listing information please refer to the owner’s/installation manual.

*For select products: Heating capacity to be used as a guide only. See your local dealer for help in determining the product that best suits your heating needs based on climate and home efficiency.

†For wood-burning appliances: Actual burn times will vary based on how the appliance is operated, load size, moisture content and type of wood used, and installation.
