Heatilator Element Wood Fireplace

Element Wood Fireplace

Description

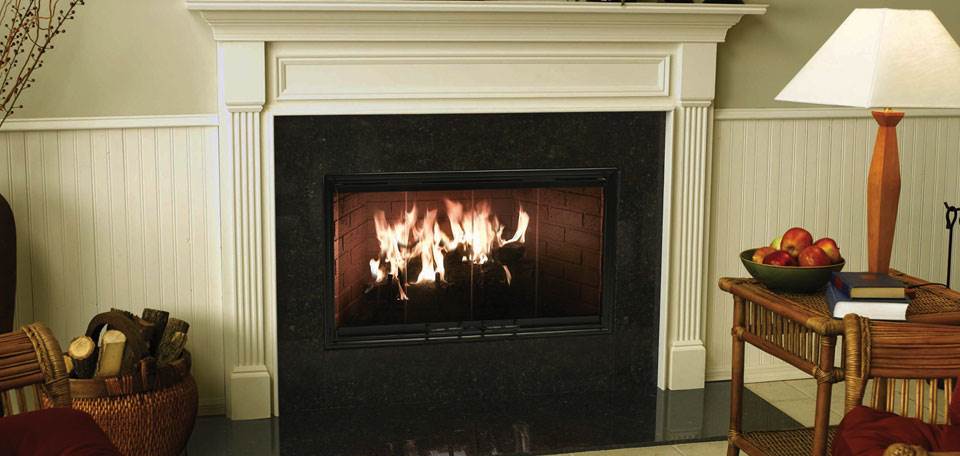

The Element helps you get the most out of a roaring wood fire with its luxuriously large viewing area and virtually invisible smoke shield. A richly-colored, textured interior creates the look of traditional masonry. The user-friendly damper and Heatilator warranty combine to make the Element the best value in its class!

  • 36″ or 42″ viewing area
  • Bi-fold glass doors available with multiple trim options
  • Convenient lip to reduce ash spillage

Options

Fronts + Doors

A variety of available front and operable door options offer a tailored appearance to any hearth. A wide range of color options will complement any home décor.


Mantels + Shelves

An impressive selection of designs are available in a variety of material and finishes.


Stone Surrounds

Enhance the beauty of a fire with natural stone surround options in marble, granite and slate.

Absolute Black GraniteAbsolute Black Granite
Beige MarbleBeige Marble
Caledonia GraniteCaledonia Granite
Marron Brown MarbleMarron Brown Marble
New Venetian GraniteNew Venetian Granite
SlateSlate
Steel Gray GraniteSteel Gray Granite
Wheatfield GraniteWheatfield Granite
Konya MarbleKonya Marble
Arctic Gray MarbleArctic Gray Marble

Specifications

Dimensions in inches. Refer to installation/owner’s manual for detailed specifications on installing this product. Hearth & Home Technologies reserves the right to update units periodically. Product installation must adhere strictly to instructions shipped with product.

Model Specifications

Element 36″ Woodburning Fireplace

Appliance Width: 41″
Appliance Height: 39-1/2″
Appliance Depth1: 21-3/8″
Appliance Rear Width: 23-3/4″
Framing Height: 39-3/4″
Framing Depth: 21-1/2″
Framing Front Width: 42″
Framing Back Width: 42″
BTU/hr Input2: 100,000
Viewing Area: 36 x 21″

Element 42″ Woodburning Fireplace

Appliance Width: 47″
Appliance Height: 39-1/2″
Appliance Depth1: 21-3/8″
Appliance Rear Width: 29-3/4″
Framing Height: 39-3/4″
Framing Depth: 21-1/2″
Framing Front Width: 48″
Framing Back Width: 48″
BTU/hr Input2: 100,000
Viewing Area: 42 x 21″

1 Appliance Depth includes entire unit including depth of firebox and extension onto hearth.

2 BTU/hr Input based on maximum feed rate per hour multiplied by approximately 8600 BTU, which is average BTU from a pound of pellets.

Heat output will vary depending on the type of fuel used. The flame and ember appearance may vary based on the type of fuel burned and the venting configuration used. Actual product appearance, including flame may differ from image shown. Refer to the owner’s manual for complete clearance requirements and specifications. Product specifications and pricing subject to change without notice. For testing and listing information please refer to the owner’s/installation manual.

*For select products: Heating capacity to be used as a guide only. See your local dealer for help in determining the product that best suits your heating needs based on climate and home efficiency.

†For wood-burning appliances: Actual burn times will vary based on how the appliance is operated, load size, moisture content and type of wood used, and installation.

EL36

EL42

Documents

Owners Manual

Install Manual
